IEC 61850 ICD Designer

Design & Manage Your IED Model Efficiently

The Model Designer is a comprehensive IED oriented SCL modelling tool for IEC 61850/61400 or companion standards. It has been designed to keep pace with the evolution of the standards. It helps engineers to configure their devices by providing a comprehensive environment to create, import, design and manipulate SCL files. The IED Model Designer has various functions and tools available to prototype, refine or extend the IED models. To ensure that all files are fully compliant with the IEC 61850-6 rules, SCL schema and SCL integrity are automatically checked.



Request a quote or order your personal evaluation package

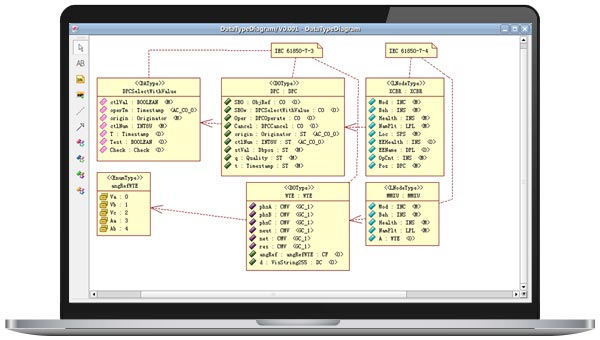

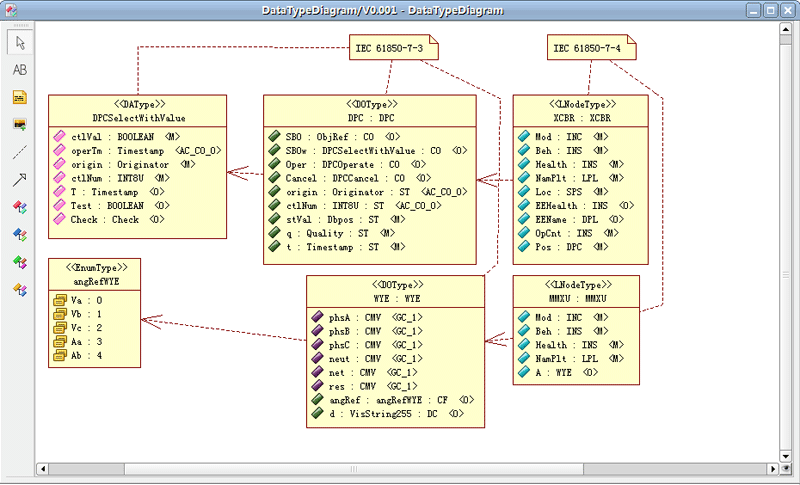

UML-based Diagrams to prototype, reuse and manage Data Types

Intelligent creation, model integrity auto detection and correction

Extract CID from SCD exported by other tools or provided by third parties

Convert CID into standard compliant ICD Template files

Overview all versions

Single Seat License

IEC 61850 ICD Designer

Electronic or USB dongle license

ICD Designer is a professional SCL design and editing tool. It has a lot of advanced features to easily create standard compliant data models. It has extensive support for known domains. It is available as a hardware bound electronic license key or alternatively as USB key.

request a quote

Informations

  • UML-based Diagrams to prototype, reuse and manage Data Types
  • Intelligent creation, model integrity auto detection and correction
  • Extract CID from SCD exported by other tools or provided by third parties
  • Convert CID into standard compliant ICD Template files
  • Instantiate ICD and configured as CID files used by simulators or physical devices
  • Add customized Logical Nodes, Data Object Types, Data Attribute Types or Enum Types
  • Add and edit private or vendor dependent data to extend SCL models
  • Batch configure or edit Short Addresses or Data Attribute initial values
  • Configure all types of ControlBlocks, GOOSE, Report, Log, SMV, Setting etc.
  • Support multiple Access Points configured with multiple Logical Devices
  • Support to configure DataSets with data entries from multiple Logical Devices
  • Support to configure and manipulate Array Data Types
  • Support to import or export data from vendor defined Namespaces
  • Comprehensive search and jump tools to navigate model and resolve dependencies
  • Intuitive, easy to use GUI interface to present highly readable views
  • Comprehensive model checks, including SCL Schema Check & Integrity Check
  • Support to instantiate IED model as IEC 61850 standard view or MMS-mapped View
  • Platform: Windows
